Dadboard PCB

Liam Geyer
  2021-10-01 2021-10-01 Created   2024-11-11 17:17:33 2024-11-11 17:17:33 Updated

Warning! This PCB Hasn’t been finished, produced, or tested, do so at your own risk!

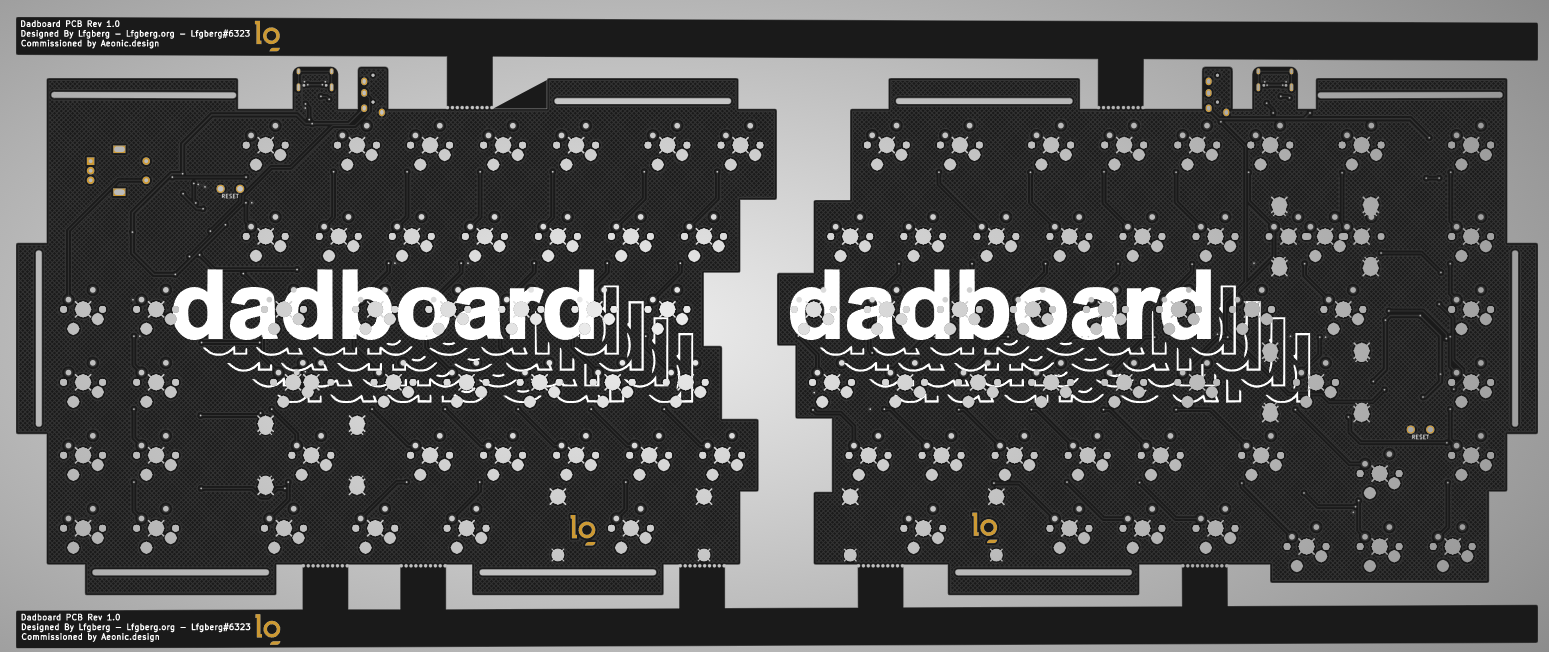

PCB Image

This is a PCB commissioned by aeonic-dev . It’s designed for use with either soldered south-facing MX-style switches, or north-facing kailh hotswap sockets. The two halves can be connected with TRRS jacks, and have USB-C. The board can use either an ATMEGA 32U4 AU/MU and is designed with mouse bites to break apart and be produced in one piece.

GitHub Repo

  • Title: Dadboard PCB
  • Author: Liam Geyer
  • Created at : 2021-10-01 00:00:00
  • Updated at : 2024-11-11 17:17:33
  • Link: https://lfgberg.org/2021/10/01/keyboards/dadboard/
  • License: This work is licensed under CC BY-NC-SA 4.0.
