Maya PCBs

Liam Geyer
  2021-08-01 2021-08-01 Created   2024-09-10 21:05:23 2024-09-10 21:05:23 Updated

Both of these PCBs were commissioned for DerpTurtle , and are not currently open-source.

Maya TKL

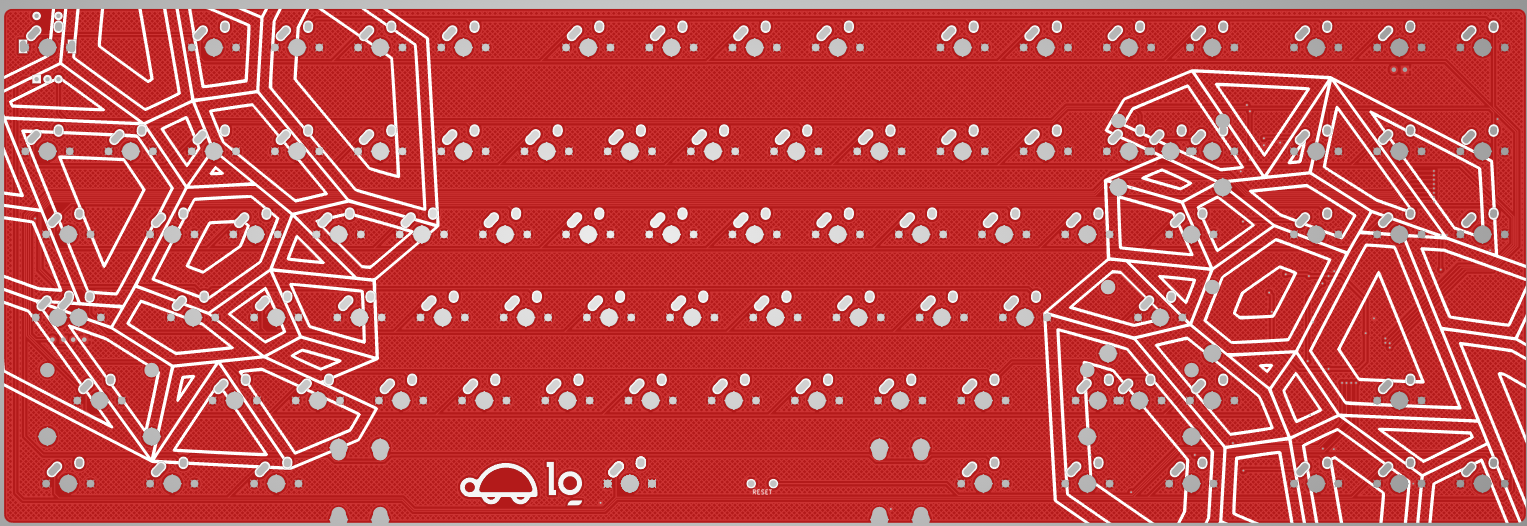

PCB Front

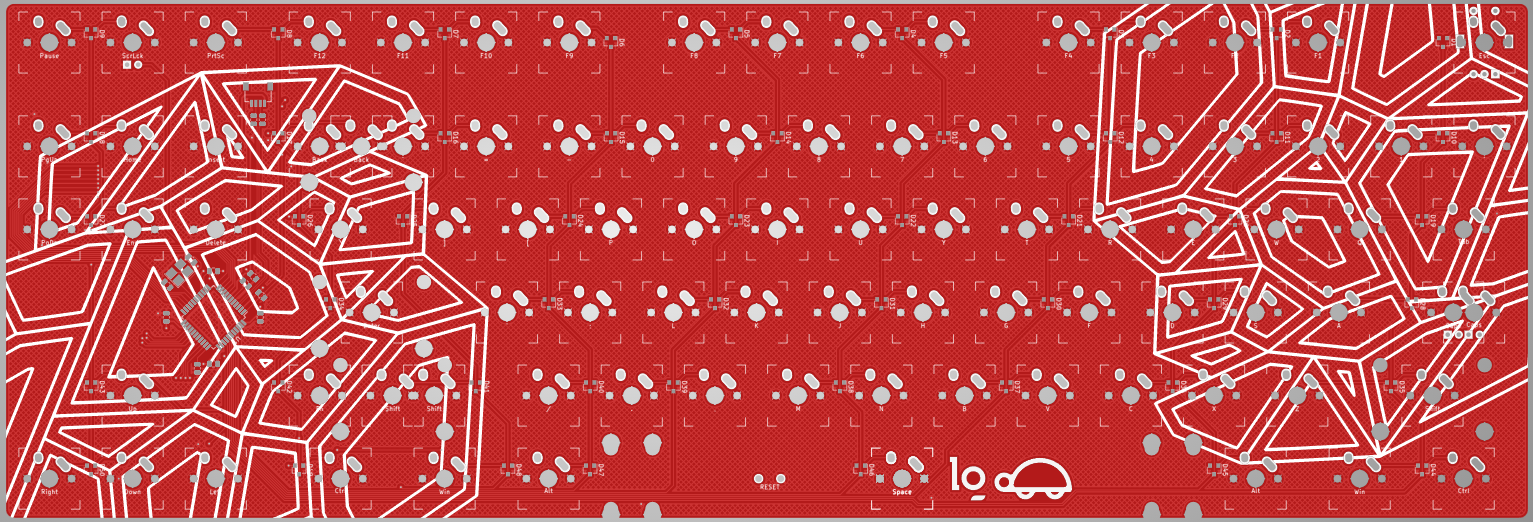

PCB Back

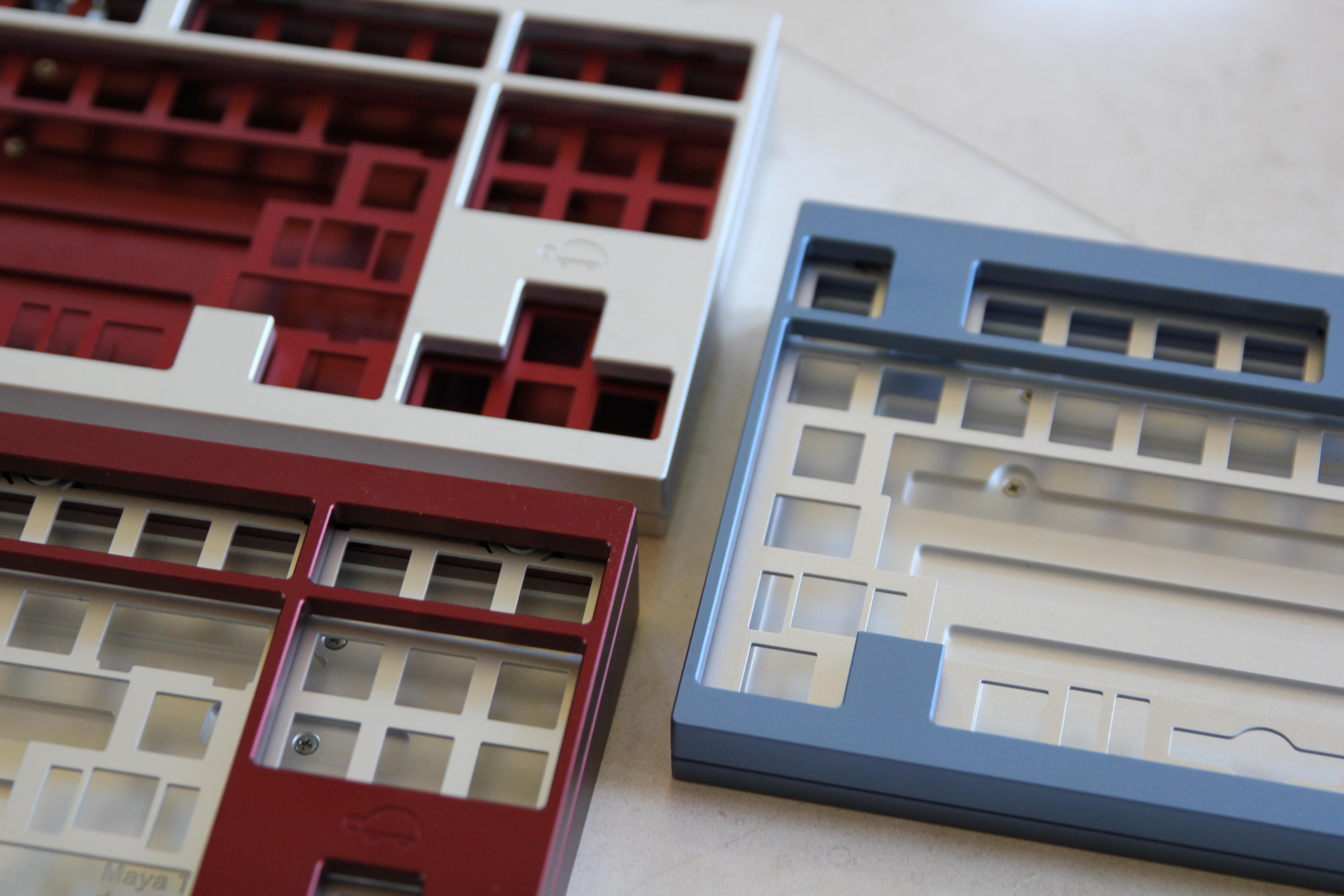

Case Prototype

This PCB utilizes a Unified-C daughterboard for USB, features a duplex matrix, and offers support for either MX-style or Alps switches. The geekhack post with more details about the board can be found here .

Maya Mini

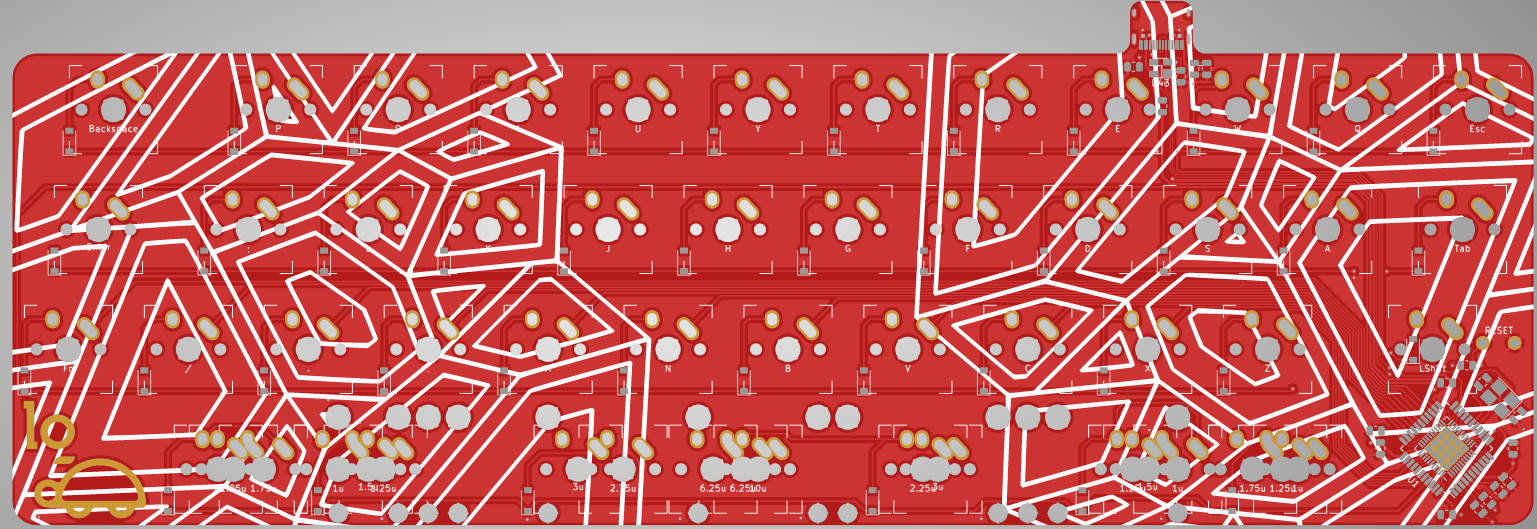

PCB Back

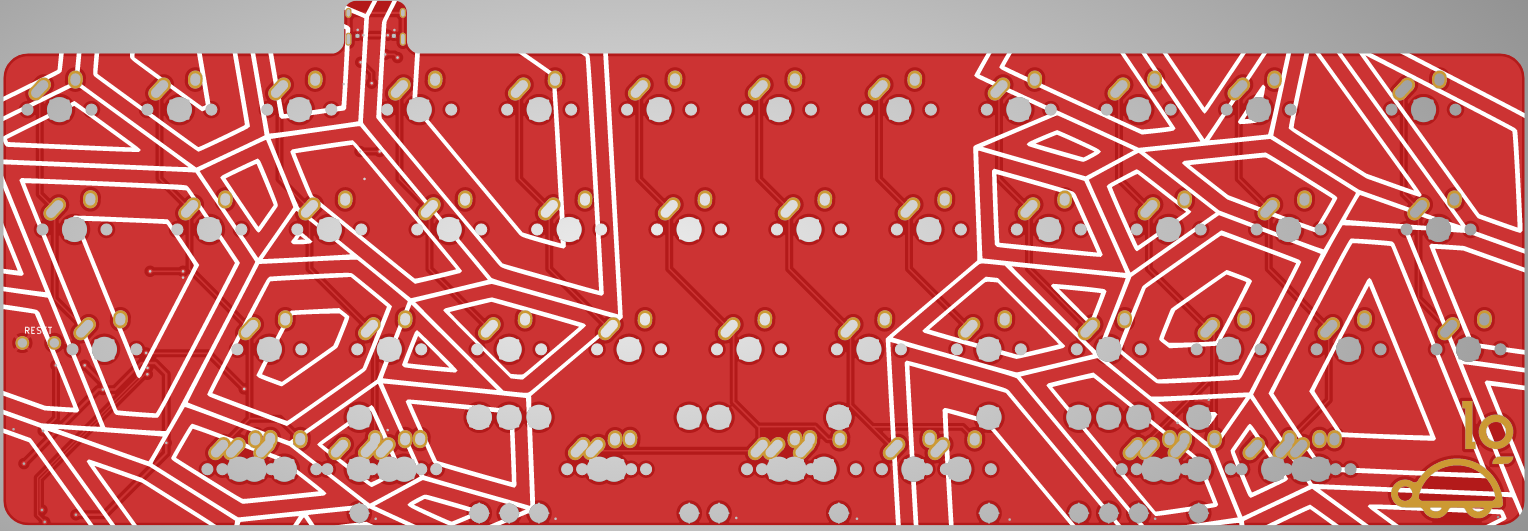

PCB Front
