Why PCB

Liam Geyer
  2021-04-01 2021-04-01 Created   2024-12-07 10:14:14 2024-12-07 10:14:14 Updated

Warning! This PCB Hasn’t been finished, produced, or tested, do so at your own risk!

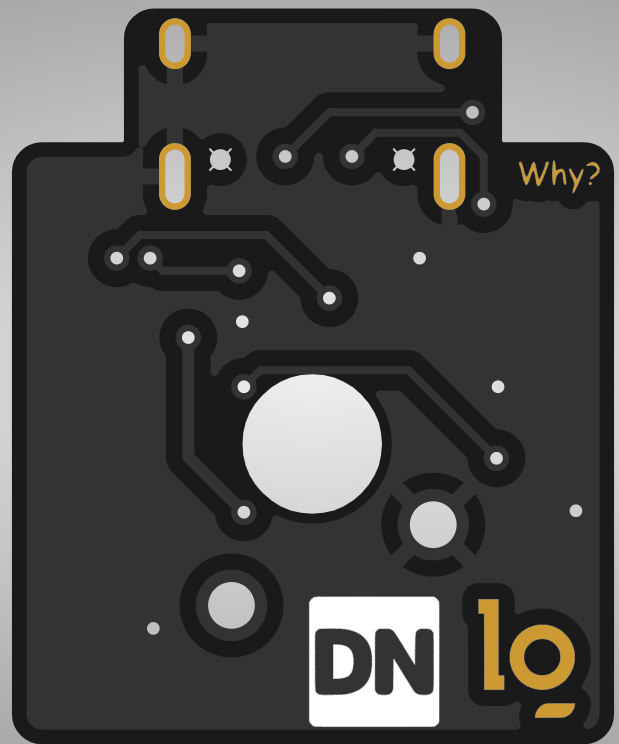

PCB Image

This is a PCB commissioned by shiba, I was never paid, so instead of being finished and produced the design was open-sourced to my GitHub. It’s designed for a one key gasket mounted keyboard, has USB-C, and utilizes an ATMEGA 32u2-MU.

GitHub Repo
